Tip: Click on Photos to enlarge them.
|
Note: For reference, all outdated revisions of drawings & schematics can still be viewed in Photo Gallery 20.1 |
|||
|

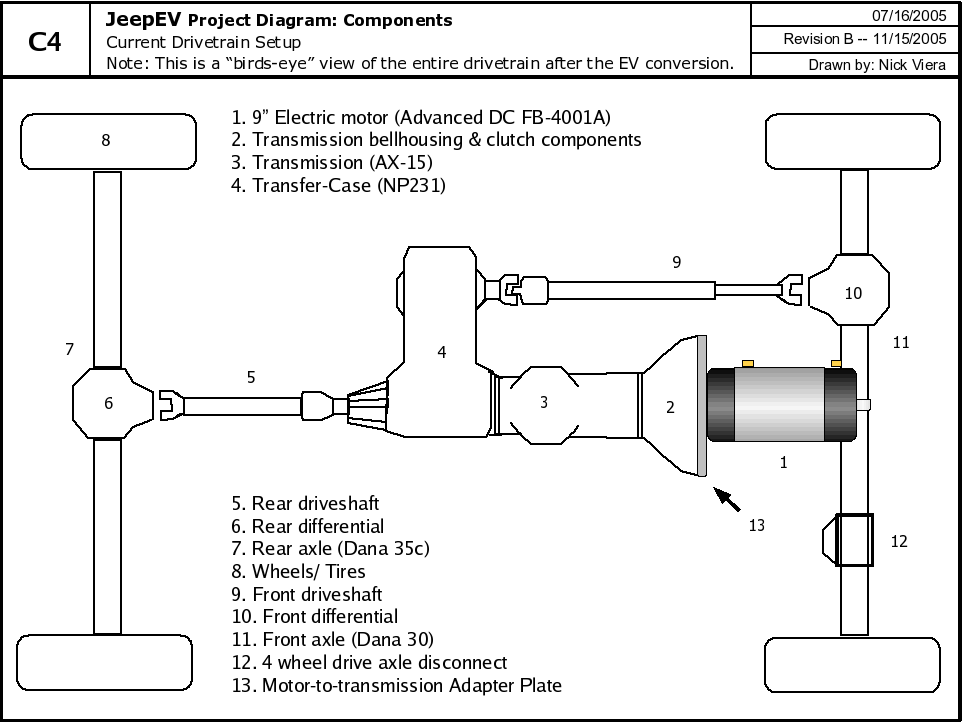

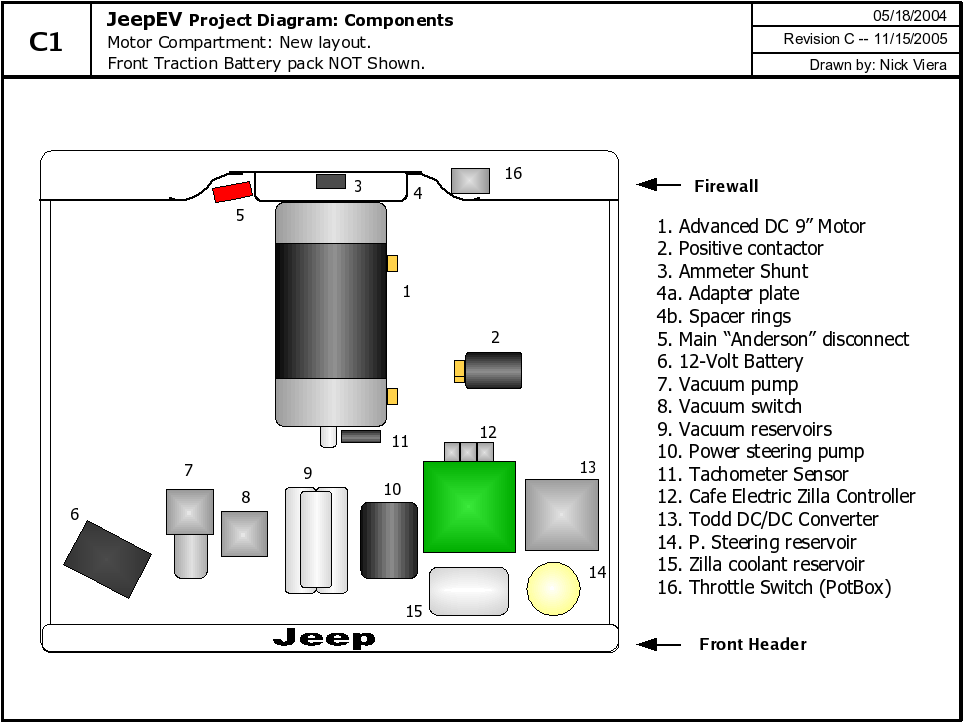

Overall component drawings (Latest Revisions) |
|||
 |
 |
 |
 |
|

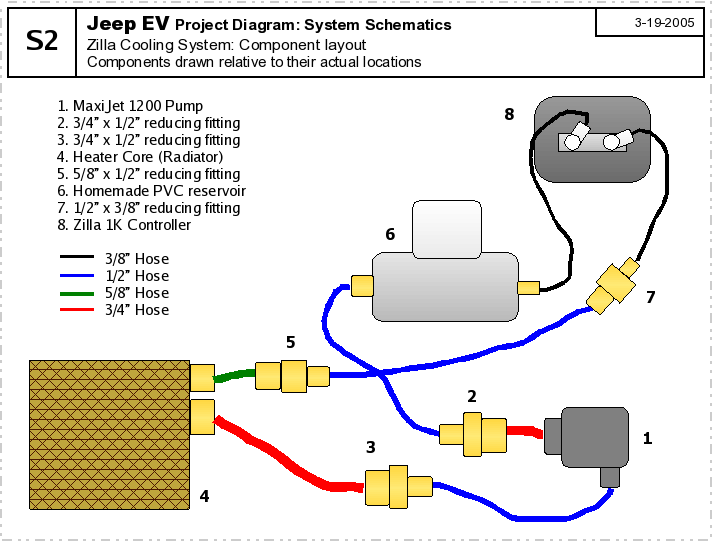

Individual system drawings (Latest Revisions) |
|||
 |
 |
||
|

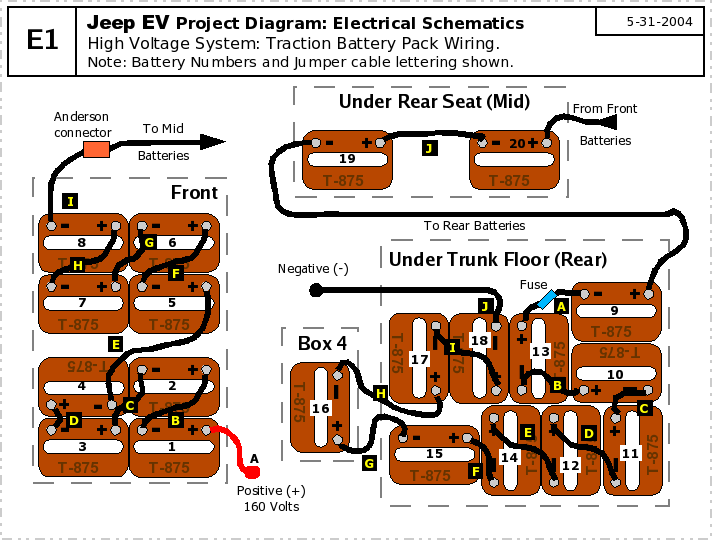

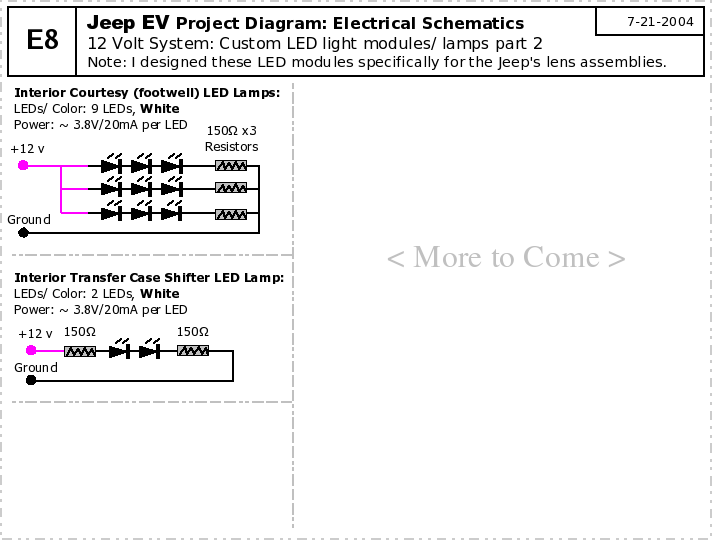

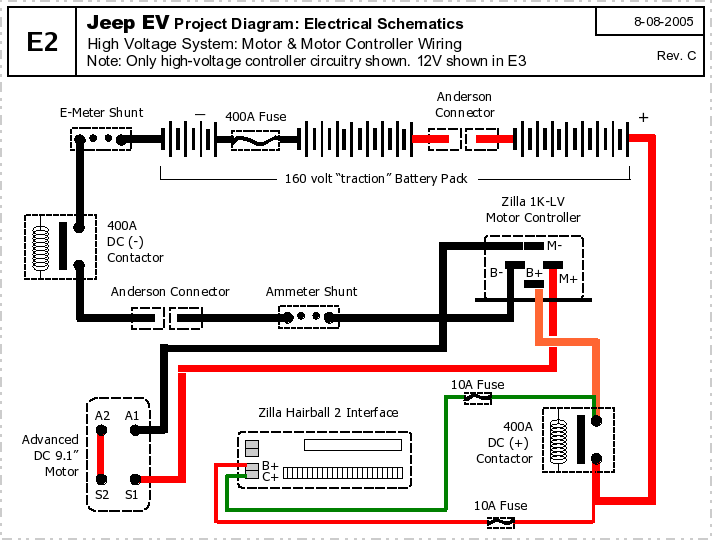

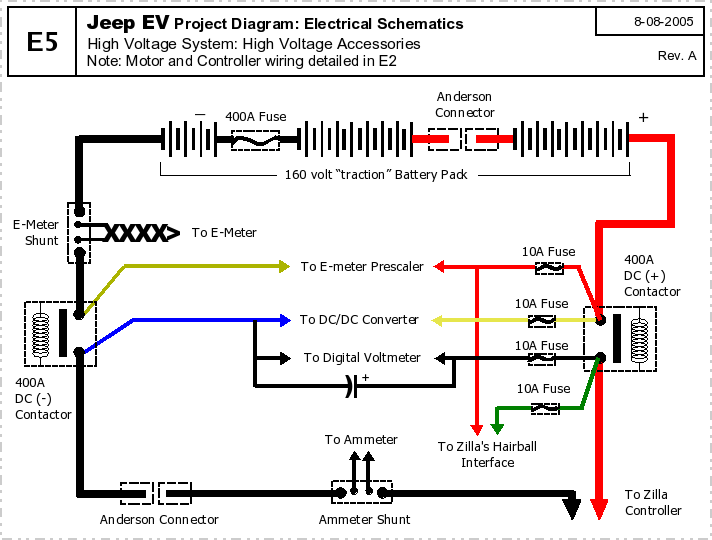

Electrical schematics (Latest Revisions) |
|||
 |
 |
 |
 |
 |
 |
 |
 |
